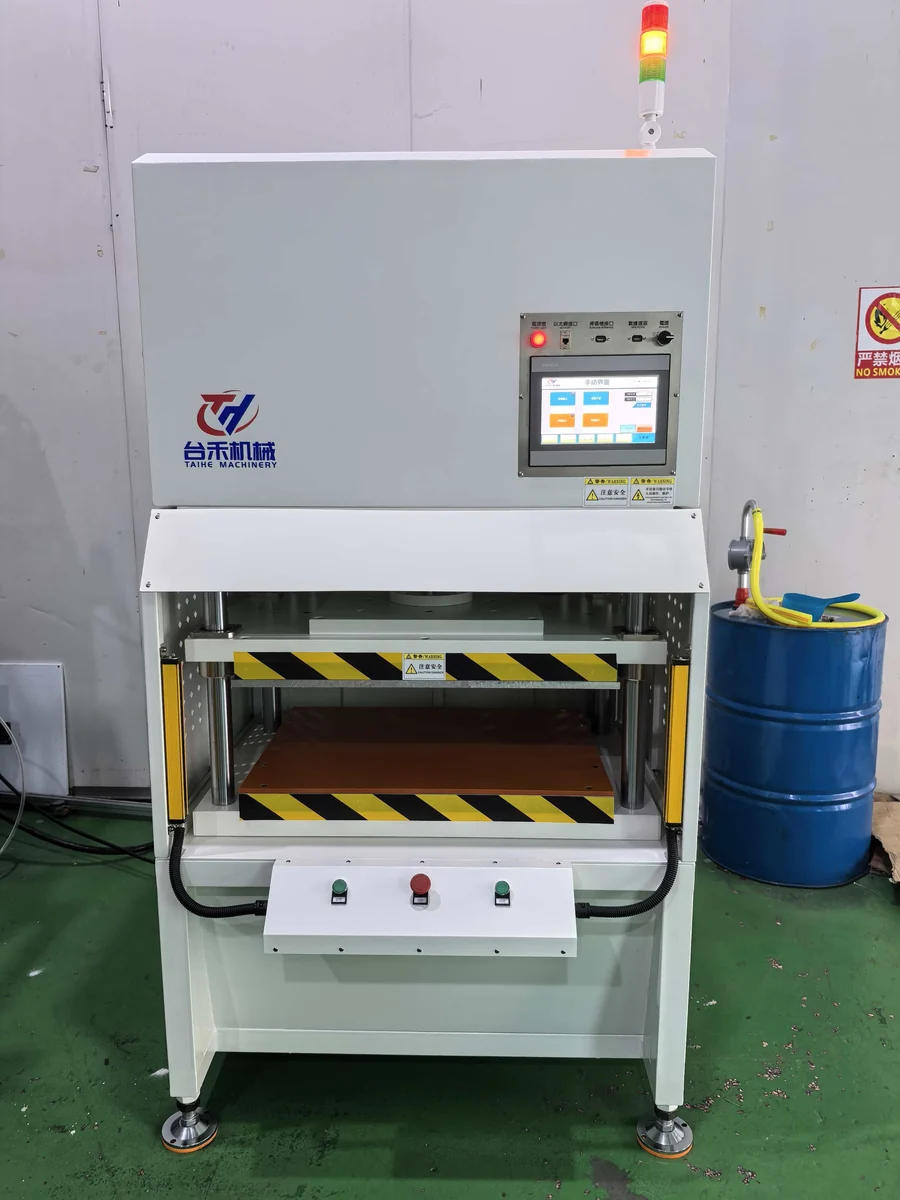

Vacuum Hot Press with Cooling
Heating, vacuum and cooling in a single integrated cycle.
A 50-ton-class press combining vacuum lamination with integrated heating and active cooling, eliminating transfer between stations and shortening cycle time while protecting the membrane from oxidation.
Key Specifications
| Press tonnage | 50-ton class |
| Heating tube total power | 40 kW |
| Servo motor power | 4.4 kW |
| Vacuum level | down to −98 kPa |
| Typical cycle | ~5 min/batch @ 200°C |
| Daily capacity | 96–288 batches |
| Cooling | Integrated active cooling |
| Dimensions / Power supply | Customized — per project |
Core precision parameters are fixed; dimensions, tonnage, tooling and process recipe are customized to your application.
Applications
Vacuum lamination of MEA / CCM where oxidation control and fast cooling matter.
