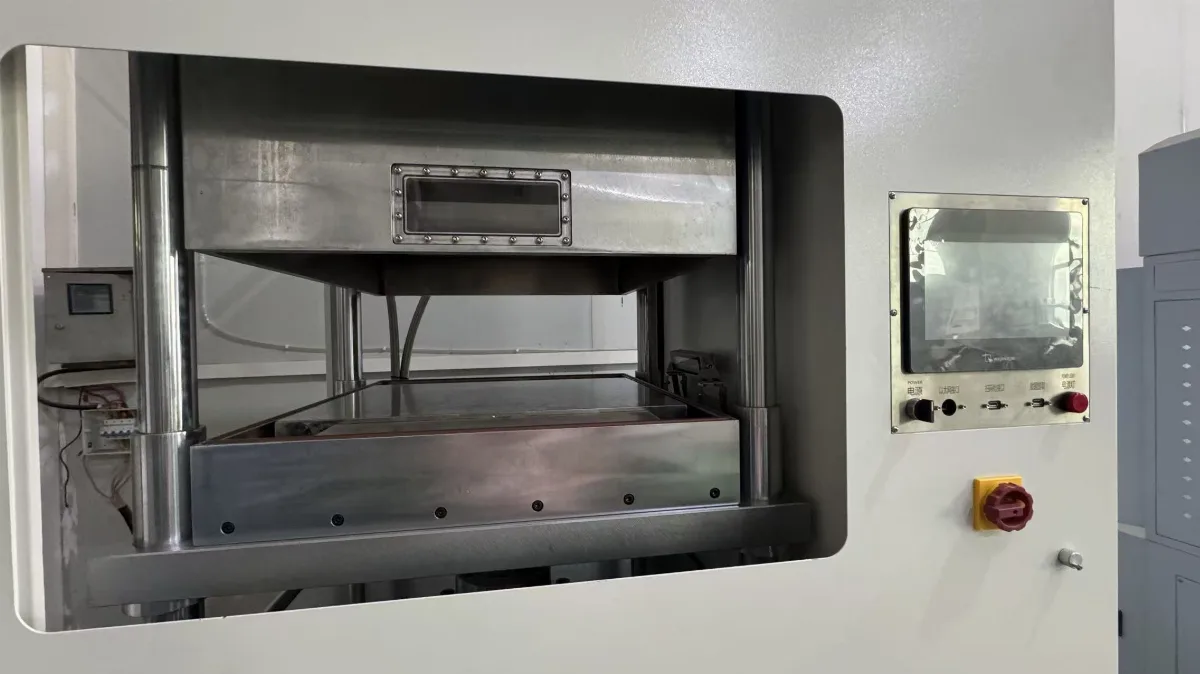

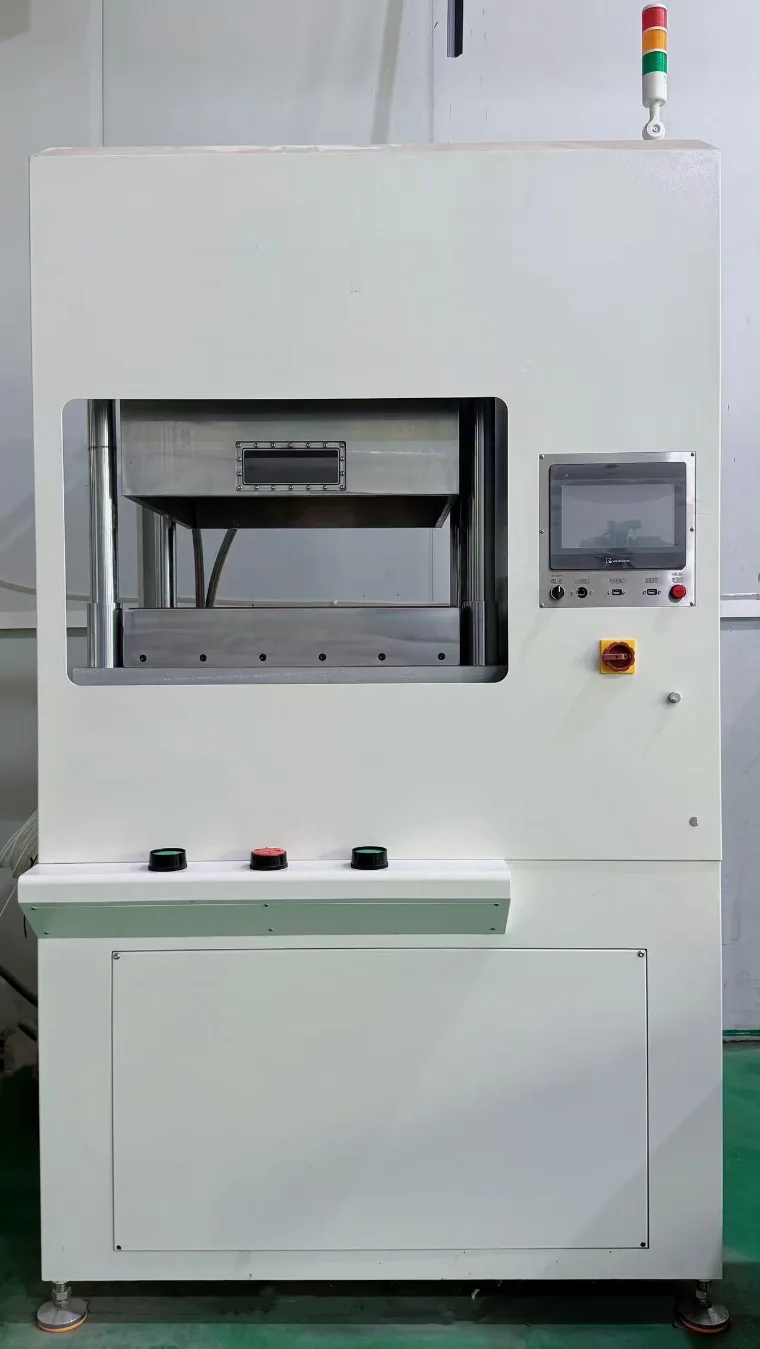

MEA Hot Press / Lamination Machine
Uniform, repeatable hot pressing for membrane electrode assembly.
Designed for the lamination and hot-pressing stage of MEA production, this servo-driven press delivers tight temperature and pressure uniformity across the active area — critical for consistent membrane electrode performance.
Key Specifications
| Press tonnage | 10-ton class |
| Servo motor power | 4.4 kW |
| Temperature precision | ±0.5 °C |
| Typical cycle | ~15–30 min/piece (process-dependent) |
| Daily capacity | 50–80 pieces (24 h) |
| Dimensions / Power supply | Customized — per project |
Core precision parameters are fixed; dimensions, tonnage, tooling and process recipe are customized to your application.
Applications
PEM fuel cell MEA, water electrolysis MEA, and 5-in-1 / 7-in-1 membrane electrode encapsulation.
